一、硬件

esp8266模塊 ×1
DHT11模塊 ×1
usb轉ttl模塊 ×1
杜邦線若干

二、軟件

含(DHT,CJSON)的NodeMCU固件下載
NodeMCU Studio 2015工具下載

三、實現步驟

1、esp8266模塊刷nodemcu固件

參見：http://www.eqytg.org/help/20.html

2、接線

DHT11模塊 DATA針腳接esp8266 的GPIO2，其他也可以（針腳索引對照表參見：http://www.eqytg.org/talk/37.html）

3、寫入代碼

pin = 4

tmr.alarm(1, 5000, 1, function()

status, temp, humi, temp_dec, humi_dec = dht.read(pin)

if status == dht.OK then

    print("DHT Temperature:"..temp..";".."Humidity:"..humi)

elseif status == dht.ERROR_CHECKSUM then

    print( "DHT Checksum error." )

elseif status == dht.ERROR_TIMEOUT then

    print( "DHT timed out." )

end

end)

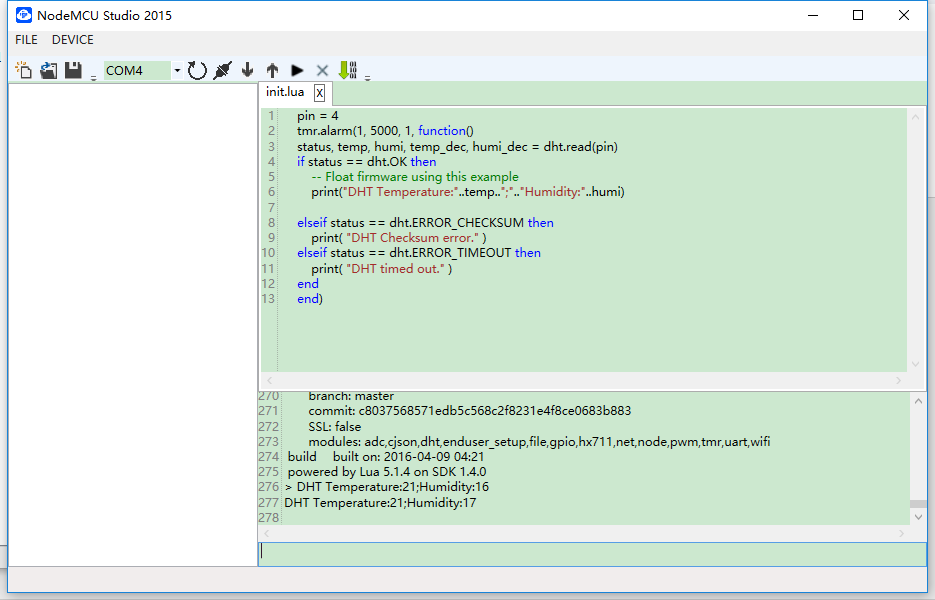

4、運行界面如下

NodeMCU的dht模塊更多用發參見官方文檔：http://nodemcu.readthedocs.io/en/dev/en/modules/dht/

稍后添加對接貝殼物聯，上傳實時數據并保存歷史數據......

評論：共7條

xianruiqi 評論于：2017-05-24 15:33:55

這個的后續程序能給下嘛？對于寫lua程序登陸貝殼物聯還是有點心有余而力不足的。@貝殼物聯

貝殼物聯 回復于：2017-05-24 18:06:37

回復 @xianruiqi:lua登錄貝殼物聯可以參考http://www.eqytg.org/help/20.html

長安愛玉蘭 回復于：2020-01-28 00:11:04

回復 @貝殼物聯:我想知道溫濕度如何能同時上傳到兩個數據接口的程序，那兒不會，能給下后面給我看看嗎@貝殼物聯

木人淚 評論于：2017-06-11 11:21:12

上傳實時數據的程序成功沒

levid 評論于：2020-03-26 21:38:14

Not connected to comm port

Connected to COM5 at 9600 baud

0倊??揜??OAE抏圑O7E掋翃
捽薩

NodeMCU custom build by frightanic.com
branch: master
commit: c8037568571edb5c568c2f8231e4f8ce0683b883
SSL: false
modules: adc,cjson,dht,enduser_setup,file,gpio,hx711,net,node,pwm,tmr,uart,wifi
build built on: 2016-04-09 04:21
powered by Lua 5.1.4 on SDK 1.4.0
set up wifi mode
>
FYI: LuaLoader version 0.91 is available for download!

Connected to wifi as:192.168.1.29
{"M":"checkin","K":"6e86b3cc7","ID":"16936"}
DHT Temperature:29;Humidity:47
DHT Temperature:717.4;Humidity:1203.2
DHT Temperature:717.2;Humidity:1177.6
DHT Temperature:717;Humidity:1177.6
DHT Temperature:692.1;Humidity:1177.6
DHT Temperature:692.1;Humidity:1177.6
DHT Temperature:691.7;Humidity:1177.6
DHT Temperature:691.4;Humidity:1177.6
DHT Temperature:691.4;Humidity:1177.6
DHT Temperature:691.4;Humidity:1177.6
DHT Temperature:666.5;Humidity:1177.6
DHT Temperature:666.3;Humidity:1177.6
DHT Temperature:666.1;Humidity:1177.6
DHT Temperature:665.8;Humidity:1177.6
DHT Temperature:26;Humidity:46
DHT Temperature:640.9;Humidity:1177.6
DHT Temperature:640.6;Humidity:1177.6
DHT Temperature:640.3;Humidity:1177.6
DHT Temperature:640.2;Humidity:1177.6
DHT Temperature:25;Humidity:46
DHT Temperature:25;Humidity:46
DHT Temperature:615.2;Humidity:1203.2
DHT Temperature:615.2;Humidity:1203.2
DHT Temperature:614.9;Humidity:1203.2
DHT Temperature:614.8;Humidity:1203.2
DHT Temperature:614.7;Humidity:1203.2
DHT Temperature:614.5;Humidity:1203.2
DHT Temperature:614.6;Humidity:1203.2
DHT Temperature:614.5;Humidity:1228.8
DHT Temperature:614.5;Humidity:1228.8
DHT Temperature:589.7;Humidity:1228.8
DHT Temperature:589.5;Humidity:1228.8
DHT Temperature:589.5;Humidity:1228.8
DHT Temperature:589.6;Humidity:1228.8
DHT Temperature:589.5;Humidity:1228.8
DHT Temperature:589.3;Humidity:1228.8
這是我讀取的溫濕度，為啥不正常呀。

deng 回復于：2020-05-30 20:53:19

回復 @levid:你是不是就照著上面的流程下來的，我一直顯示DHT超時誒

deng 評論于：2020-07-14 09:16:00

求后續連接平臺教程
